Every industry is looking to produce bigger, stronger, lighter, more economic parts - and insert molding has proven to be one of the most cost-effective and reliable solutions to that concern. From medical device products to automotive connectors to consumer electronics enclosures, learn more about how insert molding can aid you with your sourcing and design needs.
This beginners guide to insert molding will explain exactly what it is, and discuss the differences between metal and plastic insert molding, and the considerations you need to make when selecting a plastic injection molding company.
What Is Insert Molding?
What is insert molding? Insert molding involves placing a pre-made part, or "insert," into a mold cavity, and then injecting molten plastic around it. When the plastic cools, it bonds with the insert, producing a consolidated final product. No subsequent fasteners, like glue or screws, are needed to assemble the two components.
This process is popular as the results of machining the parts make them stronger, denser, and are in fact easier and often lower cost than creating the parts through multiple assemblies when produced in high volume.

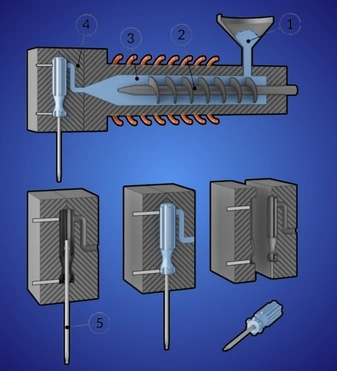

How the Insert Molding Process Works
Insert Placement - The insert (metal, plastic, ceramic or even fabric) is cleaned and placed in the correct position using fixtures or automated robot placement.
1.Mold Insert - The insert is loaded into a mold cavity that is also designed specifically for the insert, secured with locating pins or magnet.
Injection - Molten thermoplastic resin is injected around the insert at high pressure.
2 – Cooling and Ejection - When cool, the plastic shrinks tightly to the insert and the workpiece is ejected from the tool.
In some cases, this can be automated, and in other cases, it will need to be done manually for prototype and low-volume runs, giving manufacturers options based on project needs. Plastic Insert Molding Plastic insert molding involves placing a secondary lightweight plastic, fabric, or material into the outside of a finished primary plastic part. This technique is often used in applications where designers want to combine multiple different types of plastic with different characteristics – such as a rigid outer shell and a soft grip.
Advantages of plastic insert molding…
Reduces total number of components in a product
Achieves strong adhesion between different plastics
Enhances ergonomics through soft touch and textured surfaces
Allows for faster production, without having to paint or bond different plastics together Industries such as consumer goods, electronics enclosures, wearables, and other products use plastic insert molding to bring together form and function.
Insert Molding in Metal The insert molding process is probably the most important – and most frequently used – applications of the insert molding process. Metal part (such as a threaded bushing, contact, terminal pin, or bracket) is molded directly into a plastic part using this process. Insert molding into metal is particularly common for manufacturers in the electronics, automotive, aerospace, and medical device fields since it combines the electrical and mechanical durability of metal with the flexibility of injection-molded plastic. Inserts frequently used are –
Metal threaded bushings
steel inserts for fastening
Electric contact pins, nipples, and sockets
Mounting brackets and standoffs
Bearing race and shaft
Why Insert Molding Matters for Product Design
Design engineers use insert molding for the right reason… Insert molding is a sure-fire way to overcome manufacturing challenges.
Fewer parts, fewer failures - Integrating parts minimizes the number of potential failure points of a product.
Assembly cost reduction - Automated bonding during molding decreases the expense of secondary operations and reduces manual labor.
Design freedom - Using a combination of materials, engineers are able to attain characteristics that a single material might not be able to deliver.
Repeatability at volume - Automated insert placement ensures batch to batch quality consistency.
Choosing the Right Plastic Injection Molding Manufacturer
Not all plastic injection molding manufacturers have tooling experience or tools capacity and accurate tooling to produce insert molding. If you are looking to find a plastic injection molding manufacturer, take into consideration the following:
Insert Molding Experience - Request examples or case studies of their work with metal and plastic insert molded components.
Insert Placement Technology - Hand placement works for low volumes, but automated or robotic placement is required for scale.
Material Knowledge - An expert manufacturer will help you with the appropriate resin material, insert compatibility and temperature expansion factors.
Quality Control Methods - Check for ISO certifications, in-line inspection and pull-testing to confirm the strength of the insert bond.
Rapid Prototyping –A supplier that can provide you with prototypes, which allows you to validate the design without the expense of a complete production mold.
Insert Molded Parts: Achieve greater value from the use of multiple materials across the product life cycle by combining insert molding with insert over molding. Partner with an experienced insert molding company to avoid flash, voids, weak bonds, and voids in your inserts.
Industries That Use Insert Molding
Automotive - sensors, under-hood components, electrical connectors
Medical Device - diagnostic device housings, surgical instrument handles
Electronics - electrical connector housings, switch housings, circuit protection housings
Consumer - power tools, kitchen appliances, ergonomic handles
Aerospace - fuselage features, lightweight structural inserts, aircraft hardware
Conclusion
Insert molding (plastic insert molding or metal insert molding) allows manufacturers to add value to their product by integrating multiple materials, reducing assembly time and costs, and creating stronger finished components. Going forward, businesses will rely on insert molding for their smaller, multifunctional product lines. Manufacturing with an experienced plastic injection molding company that understands where and how to insert parts and what adhesives to use will save time and money.
FAQs – insert molding questions
Q1.What is the key benefit of insert molding?
Insert molding allows us to mold a part with multiple components into one production process, saving time, labor costs, and reducing points of failure.
Q2.Is all plastics suitable for insert molding?
No, insert molding is popular with plastics such as polycarbonate, ABS, and nylon that mold well, adhere well, and have good flow.
Q3.Is metal insert molding more expensive than plastic?
Metal insert molding is more costly than plastic, as the parts require metal inserts and precision manufacturing.
Nonetheless, for high load bearing applications, the performance and lifespan often offset the initial cost.
Q4.What are the key advantages of insert injection molding?
Fast turnaround and the potential for extremely complex parts with intricate insert detail, reduced tooling costs, and corrosion-free, higher performing products.
Q5.Which companies should consider insert molding?
Businesses looking to produce multi part products quickly, ergonomically sensitive molded components, or those requiring lightweight, multi-material finished products will benefit from insert molding, particularly in the automotive and medical device sectors.
Q6.When should a business choose plastic or metal insert molding?
Metal is better where heavy loads or electrical conductivity are factors. Plastic is better where a lightweight, insulating, or ergonomic element is desirable.
